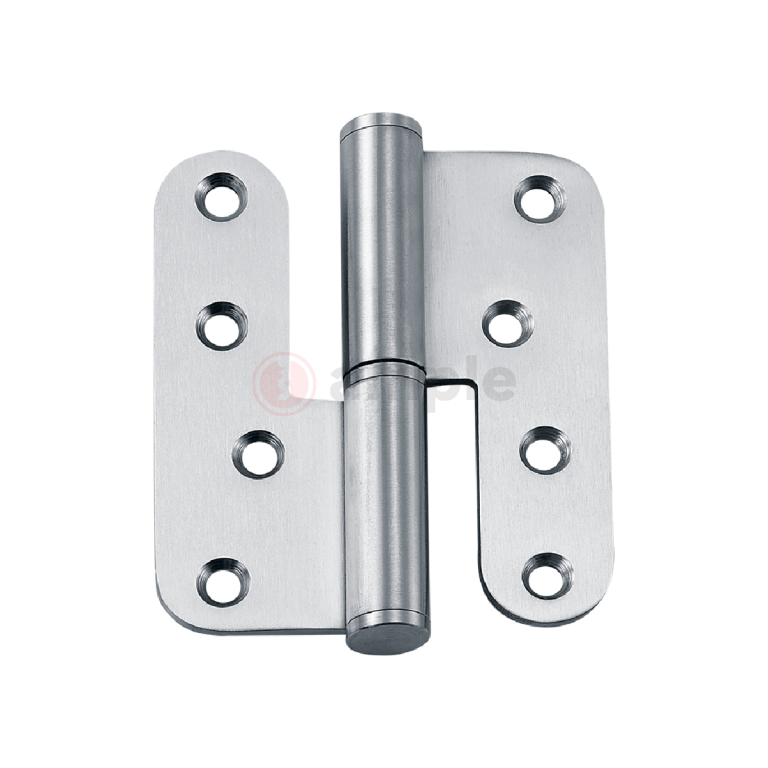

Evaloc H043530-LH-A-SS Stainless Steel Lift-off Hinge

Evaloc hinges are of high quality designed for residential and commercial applications, adhering to strict industry standards for safety, durability, and performance.

Category:

Brand:

Share Via:

Product Details

Applicable to Timber or Metal doors

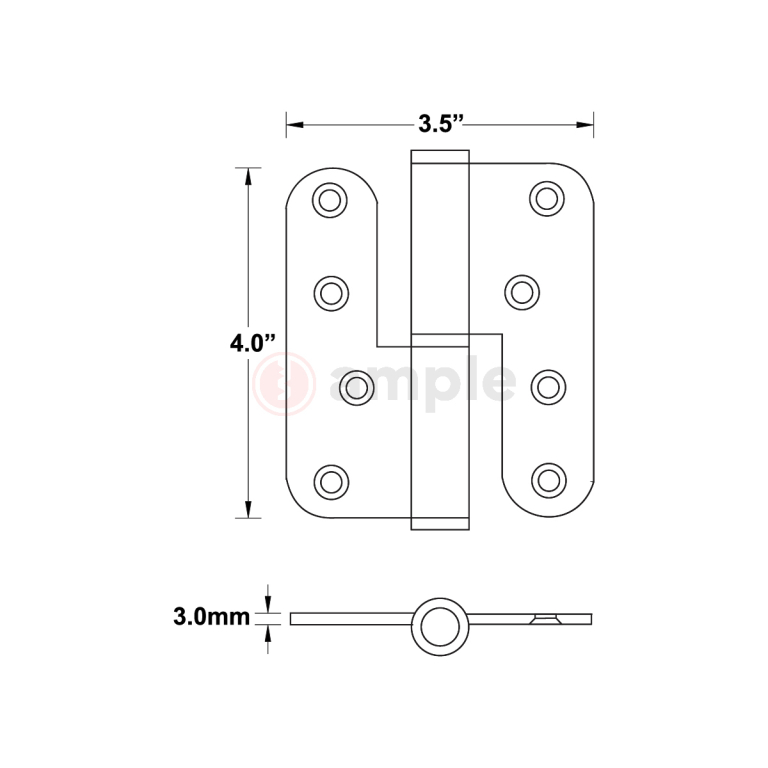

Dimensions: 4.0”(L) X 3.5”(W) X 3.0mm(T), Left hand side
Maximum opening angle of 180 degrees
It help install doors and lids by pulling out and inserting
It allow door and lid to be installed/removed to/from the door frame without removing the hinge
Leaves: SS304, Pin: SS304, Tip: SS304
Accessories: Machine screw, Wood screw SS304
Tested up to 200,000 cycles
Conforms with standard: BS EN 1935:2002

Application
Timber or Metal doors
Material
SUS304 Stainless Steel
Finish
Satin Stainless Steel
Grade
Grade 3: BS EN 1935:2002
Endurance
200,000 cycles
