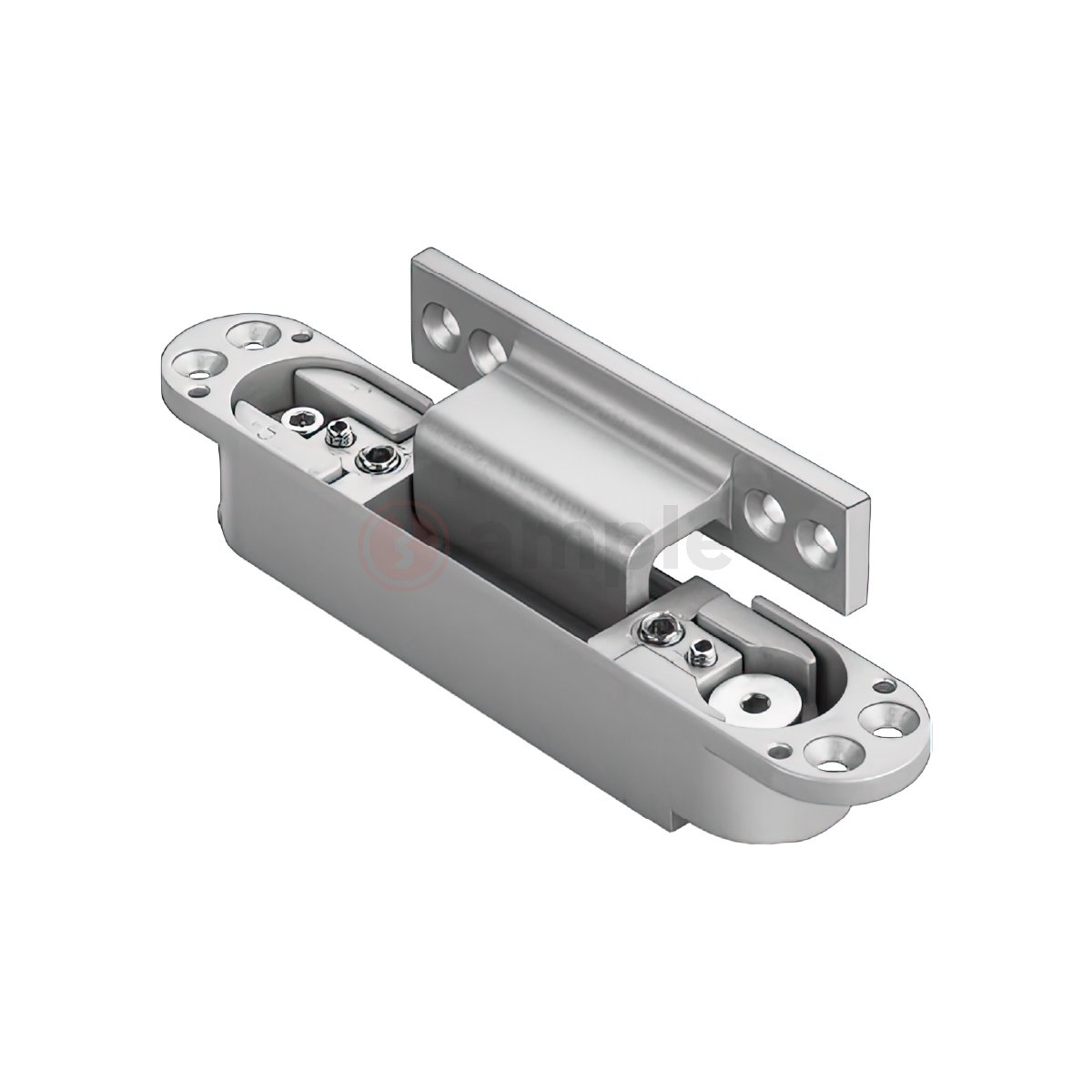

    Evaloc HCC80C Adjustable Concealed Hinge

    Evaloc hinges are of high quality designed for residential and commercial applications, adhering to strict industry standards for safety, durability, and performance.

    Category:
    Brand:
    Share Via:

    Product Details

    • Applicable to Timber or Metal doors

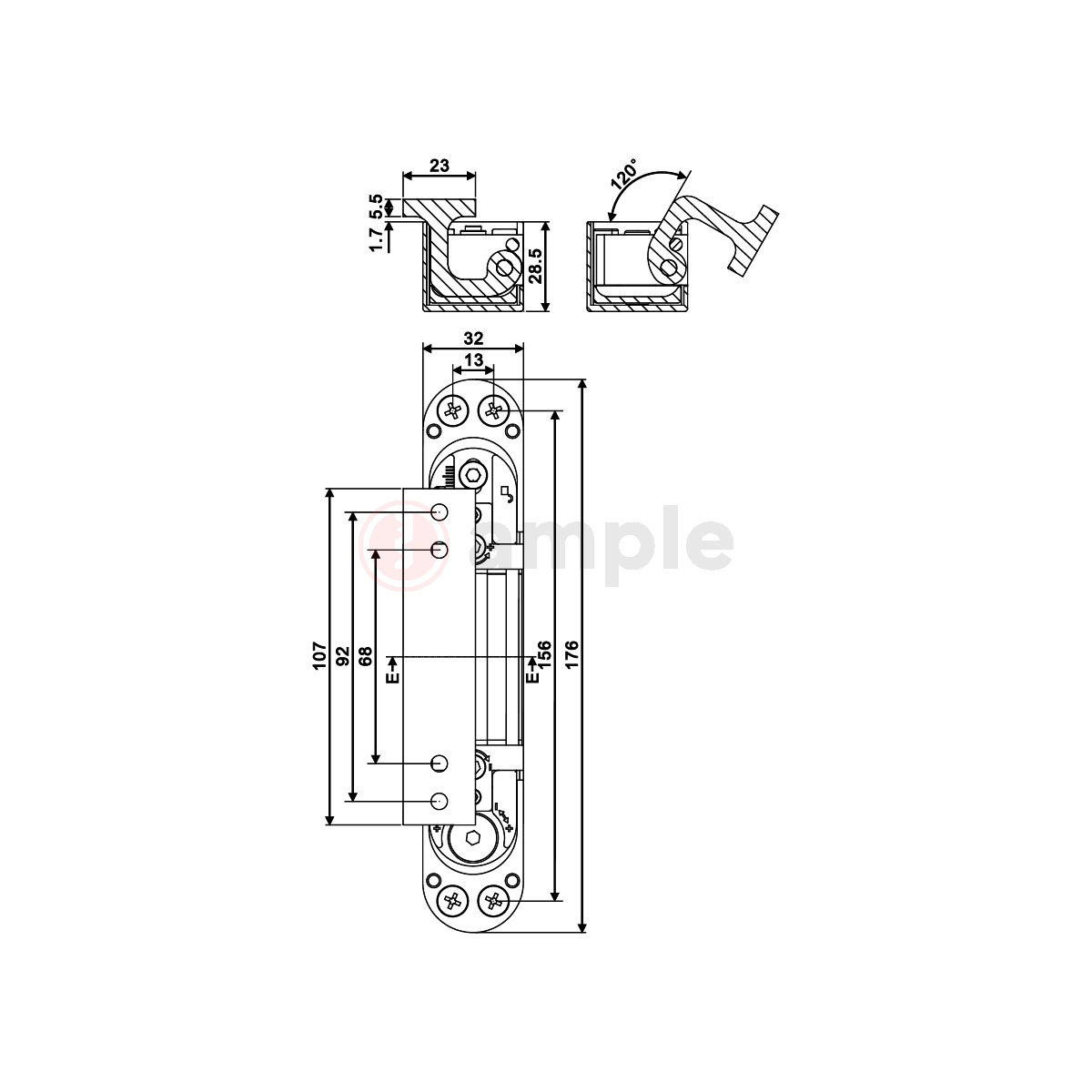

    • Dimensions: 176.0(L) X 32.0(W) X 29.5mm(H)
    • Maximum opening angle of 180 degrees, Door weight: 80kg, Min door thickness: 40mm, Max door width: 1000mm
    • Chrome, nickle, brass and painting finishes will not rust or fade after years of use
    • Made with durable zinc or aluminium alloy material
    • Tested up to 200,000 cycles
    • Conforms with standard: BS EN 1935:2002
    • Application
      Timber or Metal doors
    • Material
      Zinc or Aluminium alloy
    • Grade
      Grade 3: BS EN 1935:2002
    • Endurance
      200,000 cycles
